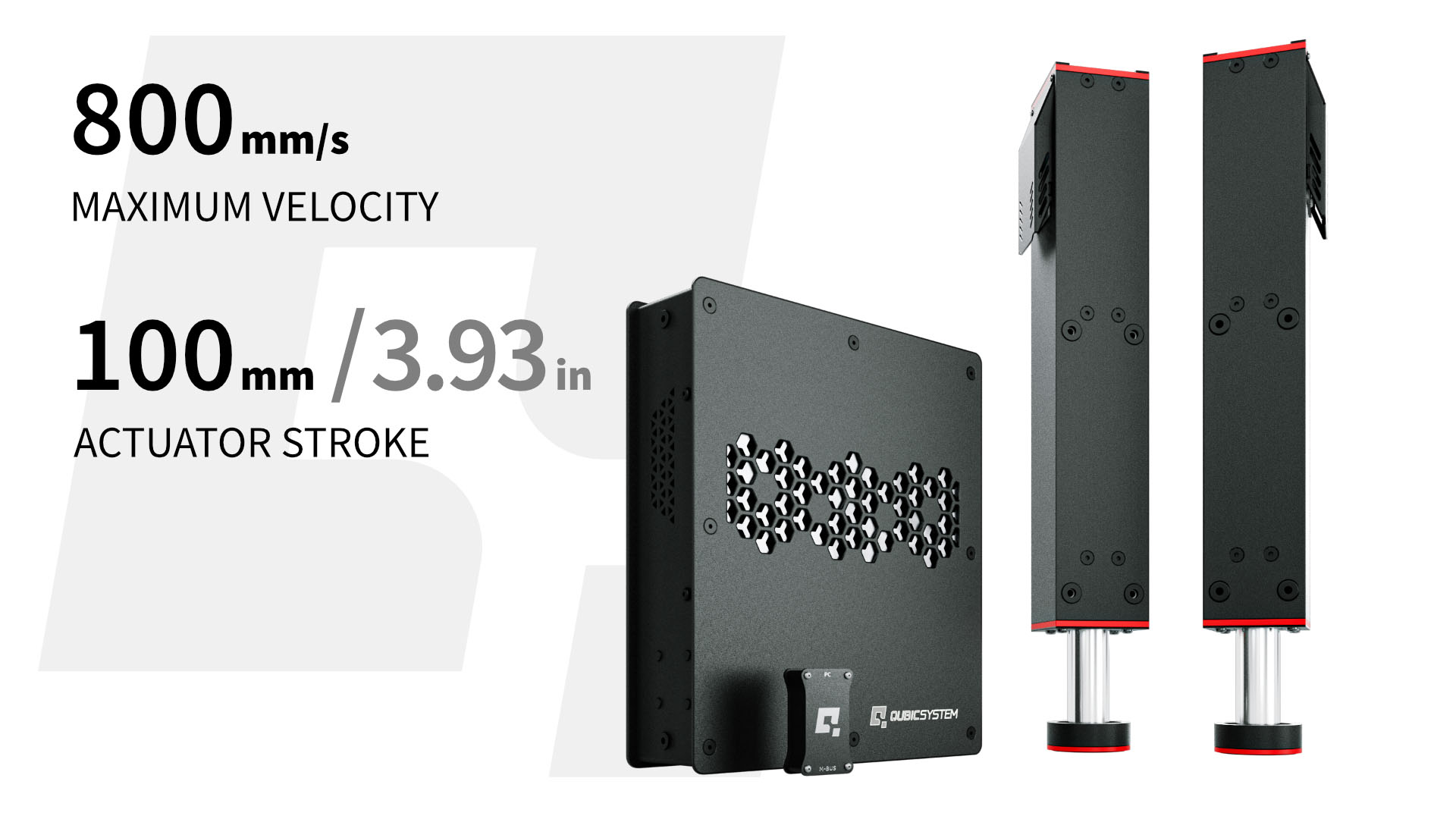

Ready2Fly Bundle NLR FGT Elite with Qubic QS220 and BT1

Qubic System - QS-MC6 – Motion Controller

NO DELIVERY WITHOUT ACTORS PURCHASED FROM US (QS220, QS210 or CH2)

The Motion Systems - Qubic - QS-MC6 - Motion Controller is the central control unit between the QS-210/220 actuator sets or the CH2 (not included - sold separately) and the PC. One QS-MC6 motion controller can control up to 4 QS-sets.

What is included in the package:

• QS-MC6 motion controller set - single unit required to control up to 4 sets of QS-220-PL:
  • 1x M10 - USB controller
  • 1x QS-SBML-1 - motion lock with additional 2 m long cable
  • 1x QS-MBT-1 - M-BUS terminator
  • 1x USB cable - 0,5 m long cable (USB micro B)
  • 1x CAT.5E patch cord cable - 2 m long

Qubic System - QS-CH1 Base Frame Set

About:

The QS-CH1 is an innovative training product designed for advanced simulation of various modes of transport. Its compact design based on the technology of linear actuators makes the driver move to the virtual world with the mapping of stimuli from the real world. QS-CH1 is a brand new, modular, and flexibly configurable training product dedicated for advanced land vehicles and city car driving simulation. QS-CH1 is a part of the Qubic System product’s series. By using a number of expansion accessories, including manipulators and dedicated peripherals, it is possible to quickly build a simulator for future drivers or vehicle operators. The motion system consists of 3 DOF platform with electric actuators that provide cues for vehicle acceleration, road curvature and obstacles such as sidewalks and potholes (not included in the Base Framne Set - see seperate products). QS-CH1 only needs a 1.5 square meter place, and it is ideal for applications where the key is to reproduce the ergonomics of the original vehicle within a compact and mobile form. Power cabinets are located in the lower part of the QS-CH1 motion platform, under the cockpit, which significantly reduces the usable space and improves safety.

What is included in the package:

• QS-CH1 BASE
  • 1x motion floor with mounting brackets:
  • 4x mounting bracket for actuators

Attention: A cockpit set is available as an add-on to the base set (see: https://www.force2motion.de/de/motion-systems-qubic-system-qs-ch1-cockpit-set.html). These parts are not included in the base set!

Price does not contain peripherals like: PC computer, actuators, controllers, the cockpit set, game or simulation software, add-ons, accessories.

Qubic System - QS-CH1 Full-Set 3DOF

About:

The QS-CH1 is an innovative training product designed for advanced simulation of various modes of transport. Its compact design based on the technology of linear actuators makes the driver move to the virtual world with the mapping of stimuli from the real world. QS-CH1 is a brand new, modular, and flexibly configurable training product dedicated for advanced land vehicles and city car driving simulation. QS-CH1 is a part of the Qubic System product’s series. By using a number of expansion accessories, including manipulators and dedicated peripherals, it is possible to quickly build a simulator for future drivers or vehicle operators. The motion system consists of 3 DOF platform with electric actuators that provide cues for vehicle acceleration, road curvature and obstacles such as sidewalks and potholes. QS-CH1 only needs a 1.5 square meter place, and it is ideal for applications where the key is to reproduce the ergonomics of the original vehicle within a compact and mobile form. Power cabinets are located in the lower part of the QS-CH1 motion platform, under the cockpit, which significantly reduces the usable space and improves safety.

The motion system QS-CH1 gives the possibility to fit and install various dashboards and steering wheels in the easy way. This product opened up new possibilities for driving schools, car manufacturers and people running R&D projects related to land vehicles.

QS-CH1 device is a modular, and configurable training product dedicated for advanced land vehicles and city car driving simulation. Users who already have a motion base (motion platform) can only use a floor with seat and steering wheel mounting brackets, which can be easily and quickly adapted to individual projects.

Qubic System - QS-Bracket

The universal brackets for Qubic System actuators and 3rd party racing cockpits. The QS brackets have a hole spacing that fits the most common simracing cockpits on the market.

Scope of delivery:
1 bracket - consisting of a left and right half-shell - For a complete set of 4 actuators you need 4 of these parts

Qubic System - QS-CH1 Base Frame Set

About:

The QS-CH2 is a 2DoF motion platform that gives the SURGE and YAW motion for even better of feeling vehicle’s traction loss, breaking and accelerating. The motion system based on world’s fastest linear actuator’s technology provides incredible levels of vehicle feedback to the driver. This motion platform is suitable for Rally, Drift, GT and F1 simulations. The platform is fully
compatible with Qubic System 3DOF actuator’s set and QS-CH1 motion cockpit.

The system in our Showroom for testing: VIDEO

Link to Video: https://www.youtube.com/watch?v=GuoGMqHqqug

Key Features: What is included in the package:

• QS-CH2 Motion Platform
• QubicManager software download
• USB and power cables
• Nuts and Bolts required for assembly
• Product Manual

Please note:

• Price does not contain peripherals like: The Cockpit (The pictured QS-CH1 with the Qubic actuators is NOT included),PC computer, manipulators, game or simulation software, add-ons, accessories.
• Requires separate purchase of QS-MC6 (motion platform controler) if not already owned
• Production- / Shipping-Time aprox 10-14 weeks after your order.

Attention: Please ask us for the freight costs for your country before ordering, as the shipment may be made together with other Qubic products in a special transport box and the freight costs must therefore be calculated individually.
