Motion-Systems Qubic System - QS-220-2DOF Motion System - Set with 2 Actuators and 1 Power Cabinet

Product No.:: H.MOS.QS.220.2DOF
Dispatch within:: 2-5 working days (In stock Shop) (Explanation of stock and delivery times)
Stock:: 2 Set
Weight:: 30 kg per Set

5.075,00 EUR

incl. 19% tax excl. Shipping costs

Set:

Add to wish list

Price offer

Ask about product

Description

Qubic System - QS-220 Motion System - Set with 2 Actuators and 1 Power Cabinet

NOTE: We currently only sell this item as a set with 2x QS220, not individually.

About QS-220

Linear actuator technology by Motion Systems allows to develop highly realistic applications with detailed motion textures, velocity, suspension interaction feedback, engine vibrations, tactile feedback, haptic system and vehicle dynamics. Innovative technology, modular and compact design, as well as the quiet operation makes the QS-220 as a perfect motion base not only for professional application but also for home users in various types of cockpits. Additional sets of QS-220 can be configured as a 4 and 6 actuated system to provide 3 / 4 / 6 DOF using dedicated cockpits from Qubic System product line.

By using dedicated software Qubic Manager the user can use several sets to create the most realistic simulation that immediately responds to onscreen situations to deliver real life experience in gaming or VR
applications. Motion Systems is a global leading motion platforms brand for professionals and the most demanding home users. For over 10 year the company has been designing and providing bespoke motion solutions for industry and cutting edge technology for racing and flight simulation.

Fast Facts - Hardware:

Patent pending technology of QS-L1 linear actuators from Qubic System Line allows to develop highly realistic applications with detailed effects from simulation telemetry. Motor drivers have
been designed by Motion Systems company to do just one job, to control motors in vehicle simulator applications and they are exceptionally good at it.

Included power cabinet (control module) QS-SB2 is responsible for the power distribution and communication to handle telemetry signal processing where motion controller dispatches the commands
to drivers which parse the incoming command as soon as the command arrives. Control module sets the motion and vibration cues for each single actuator. The driver works with both 115V and 230V power
network without any adapters or voltage converters.

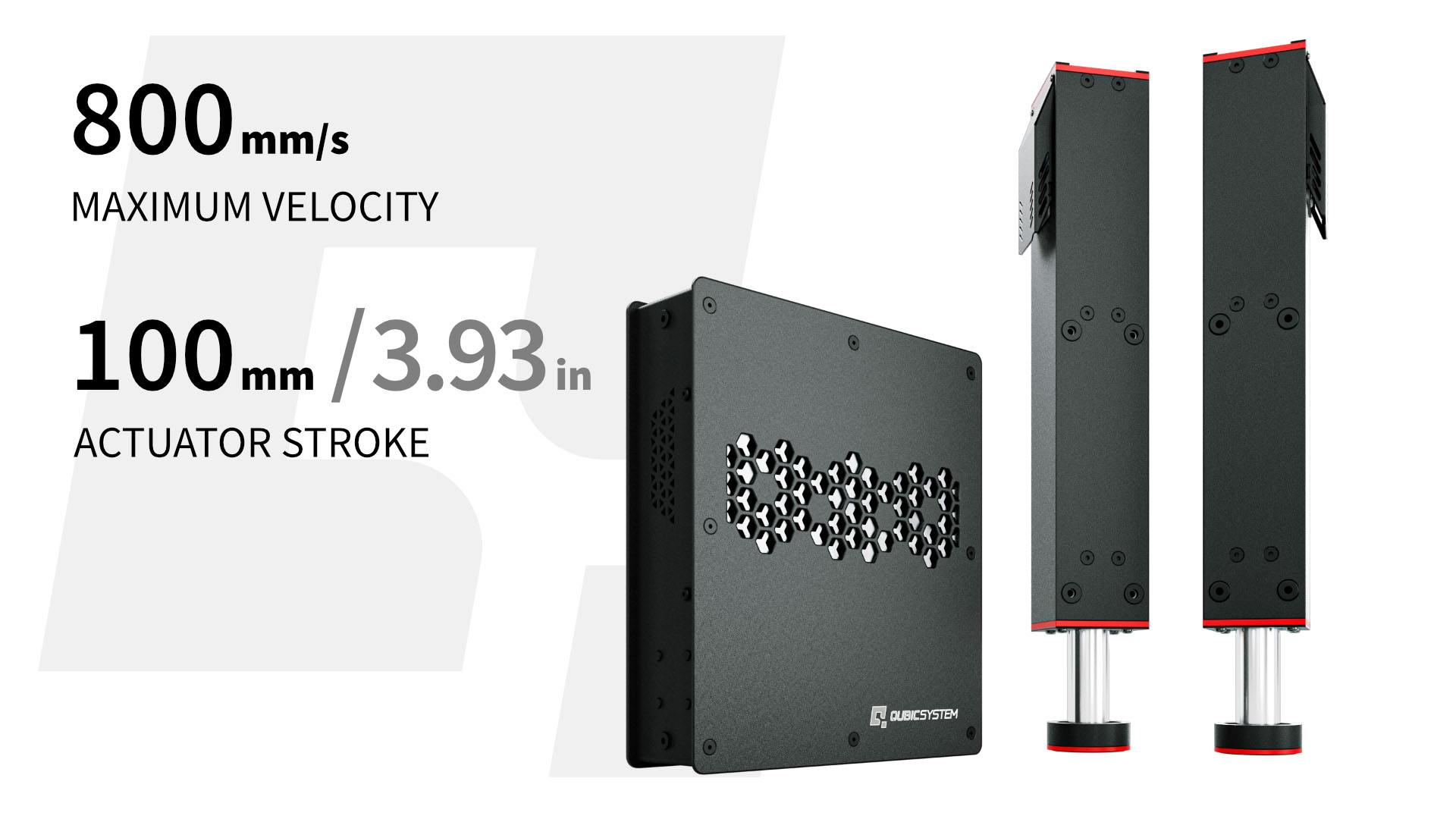

General specification of QS-220 set:

Architecture: 2 / 3 / 4 / 6 DOF (depending on user configuration and number of modules)
Actuator stroke: 100 mm | 3.93 in
Maximum velocity:
- Q-Mode (230V): 800 mm/s
- Performance Mode (115V/230V): 400 mm/s
- Heavy Duty Mode (115/230V): 300 mm/s
Maximum acceleration:
- Q-Mode (230V): 0.8G*
- Performance Mode (115V/230V): 0.7G*
- Heavy Duty Mode (115/230V): 0.4G*
- *value of acceleration is limited for safety reasons.
Recommended payload in 3DOF (2x QS-220) configuration:
- Q-Mode: 200kg
- Performance Mode: 250kg
- Heavy Duty Mode: 350kg
Maximum control frequency: 1000 Hz
Vibrations frequency range: 0-100 Hz
Latency: <8 ms
Product weight: 30 kg | 66 lb
Total length: QS-L1: 90 mm | 3.55 in, QS-SB2: 385 mm | 15.16 in
Total width: QS-L1: 90 mm | 3.55 in, QS-SB2: 300 mm | 11.81 in
Total height: QS-L1: 553-653 mm | 22-26 in, QS-SB2: 88 mm | 3.46 in
Cable length (QS-L1 actuator - QS-SB2 Power cabinet): 1150mm | 45.2 in
Power supply requirements: 115/230 VAC Single Phase
Average power consumption in 3DOF configuration:
- Q-Mode: 260W (230V)
- Performance Mode: 280W (230V), 270W (115V)
- Heavy Duty Mode: 436W (230V), 462W (115V)
Peak current for breaker specification in 3DOF configuration:
- Q-Mode: 5.17A (230V)
- Performance Mode: 4.55A (230V), 7.35A (115V)
- Heavy Duty Mode: 5.88A (230V), 9.89A (115V)
Connection: USB

Fast Facts - Software:

Even most advanced hardware is nothing without good software. Qubic Manager by Motion Systems company is professional and specialized software for the platform and is "click and play" compatible with
all major racing and flight titles on PC and constantly updated to support new applications as they are released. Gives user possibilities of motion adjustments, motion post-processing, extensive diagnostic or
easy and fast use of predefined profiles. The Qubic Manager is a powerful engine, yet it’s simple to use meaning you can adjust levels of motion, bumps, roll and pitch with a click of a button.

Qubic Manager software license is free-of-charge.

Few main features:

Over 80+ already integrated and supported racing games and professional simulation applications.
Included VR Headway technology uses advanced mathematic formulas to calculate necessary compensation and applies it to the VR headset at runtime. It eliminates platform movements from the VR tracking system causing your experiences to be more immersive, authentic and has huge impact on VR sickness compensation.
The motor control algorithm has been developed to be used strictly in simulation application. The positioning signal is analyzed and preprocessed directly by the driver, so it is possible to change all driver parameters at basically zero cost (time / latency). Drivers parse the incoming command as soon as the command arrives. It also allows to append different types of vibrations (per actuator) on driver level.
Motion sickness compensation thanks to telemetry data provided in real time directly by the game’s engine and immediately injected to the hardware to perform.
Equipped with Tactile Audio Based Feedback System that can use tactile trans-ducers (Buttkicker) connected to a seperate sound card to generate additional effects on your cockpit (Buttkicker and additional Soundcard not included - available seperatly).
Thanks to having full control of the technology Motion Systems company can change control algorithm source code, introduce new parameters and features without waiting for 3rd party vendors. Simple software update can introduce new features to the customers.
Motion SDK (FSM or FSDI) for software developers is also available as an extra option. That powerful interface allows to add a motion platforms support to any application or game.
… and many more!

What is included in the package:

QS-220 motion set:
- 2x QS-220 - linear actuator with cup holder
- 1x QS-SB2 - power cabinet (control module)
- 1x QS-SBML-2 - motion lock cable (up-link/down-link) - 2 m long
- 1x Power cable - 1 pcs of 1,8m long cable for EU market / or 1 pcs of 2m long cable for USA market
- 2x QS brackets for mounting on aluminum profile cockpits (Note: For mounting an FGT cockpit or similar, please also consider the specially widened F2M brackets as an option for an additional charge)

What else is needed to operate the set:

QS-MC6 motion controller set - single unit required to control up to 4 sets of QS-220 (not included - see seperate product)

Software

Qubic Manager software license: https://qubicsystem.com/

Supported games and simulations: https://motionsystems.eu/supported-games/

SDK: https://motionsystems.eu/?s=SDK

Support

Some questions about Motion Platforms by the manufacturer Motion Systems or Next Level Racing can easily be answered by taking a look at the documentation or the extensive know-how database:

And if you have not yet found the right solution to your problem, please feel free to contact us: service@force2motion.de or phone +49 (0)2405/479490.

Documents

Qubic QS-220-PL Product Datasheet (346.47 KB) :: Qubic QS-220-PL Product Datasheet

Qubic QS-CH1 Product Datasheet (811.06 KB) :: Qubic QS-CH1 Product Datasheet

Qubic QS-220-PL User Manual (9.32 MB) :: Qubic QS-220-PL User Manual

Motion Systems Catalouge (15.13 MB) :: Motion Systems Catalogue

Qubic Catalog Mini F2M (7.41 MB) :: Qubic Catalog Mini F2M

Product safety

Qubic Systems - Motion Systems
Motion Systems Michał Stanek
ul. Miedziana 7
55-003 Nadolice Wielkie, Polska
Web: motion-systems.eu
E-Mail: info@motion-systems.eu
Ticket-System (Reparaturen, technische Probleme): https://motionsystems.atlassian.net/servicedesk/customer/portal/1/group/1/create/1

Customer reviews

Unfortunately there are no reviews yet. Be the first who rates this product.

Order this package and save

Next Level Racing F-GT Elite - Wheel Plate...

Next Level Racing® F-GT Elite Formula & GT Aluminium Profile Simulator Cockpit - Wheel Plate Edition

Key Features:

All in one cockpit with quick adjustments for all driving positions including true formula, GT, hybrid, truck, and tank
Rigid and highly adjustable mounting support included for your seat, wheel, pedals, shifter, handbrake
Post anodized custom carbon grey (scratch resistant) aluminium profile with premium carbon steel powder coated components
Pedal position height, angle and distance adjustable
Pre-machined holes in aluminium profile for rigidity and ease of assembly
Compatible and easy installation with Next Level Racing® Motion Platforms
All the extra’s included such as NLR seat slider system, seat brackets, height adjustable shock absorption feet, gear shifter & handbrake support plate, foot step, Buttkicker® gamer 2 adaptor, cable management clips, Motion Platform V3 adaptors, ratchet tool & more
Premium packaging including double boxing and foam moulded cut outs for aluminium profile and parts
T-slot extruded aluminium allows compatibility of accessories with other cockpit brands
Fully enclosed base frame for strength and aesthetics
Taller aluminium profile for wheel mount uprights allowing for wider range of driving positions and users
Compatible with all major brands of electronics for major brands of wheels, pedals and shifters including Fanatec, Thrustmaster, Logitech, Simxperience and many more

Please note: For direct drive wheel users such as Fanatec® DD/ Simucube®/ Simagic® Next Level Racing recommends the Next Level Racing® F-GT Elite Front and Side Mount Edition for an optimal racing experience

1.079,00 EUR

F2M Adapter System FGT-Elite-Qubic

F2M adapter system FGT-Elite-Qubic

With the F2M adapter system FGT-Elite-Qubic it is possible to mount the Qubic actuator system QS210 or QS220 on the Next Level Racing FGT Elite cockpit

The F2M base plate is mounted under the Next Level Racing FGT Elite cockpit and closes off the cockpit at the bottom. The control units for the Qubic QS210/QS220 can be mounted on the underside of the plate using pre-drilled holes.

With the extended actuator brackets also included, the actuators can be mounted on the cockpit offset by 40 mm so that they do not collide with the pedal plate of the FGT-Elite/FGT 160.

Attention: When mounting the system on a Qubic CH2, the Qubic CH2 cockpit adapter set is also required (see https://www.force2motion.de/de/cockpit-adapter-set-qubic-ch2.html)

The plate consists of a 5 mm thick folded aluminum sheet, powder-coated in black fine structure, with corresponding holes for attachment to the aluminum profiles of the cockpit. The set is supplied with screws and I-profile M8 slot nuts. The actuator brackets consist of black powder-coated brackets with corresponding holes, e.g. for the FGT-Elite cockpit (80/100 and 160 aluminum profiles).

Scope of delivery:

Base plate black powder-coated 5 mm drilled for NLR FGT Elite
T-nuts
screws
4x double sets of actuator brackets for wider actuator mounting - A double set consists of two identical / mirrored brackets.
Any controllers and accessories shown are NOT included!

Only 850,00 EUR

Force2Motion adapter for Qubic BT1 Belt-Tensioner...

Force2Motion adapter for Qubic BT1 Belt-Tensioner to NLR Motion Platform V3

In combination with the BT1V3 adapter developed by us, the Seat Belt Tensioner can be mounted on a Next Level Racing V3 as well as on practically any other seat console. The function of a seat slider for longitudinal adjustment of the seat is fully retained.

Watch the video (sorry German version only)

Scope of delivery:

1x Force2Motion adapter for Qubic BT1 Belt-Tensioner
Screw set

Motion platform, belt tensioner, seat slider etc. NOT included.
Attention: Does not fit the Qubic CH1!

Only 278,00 EUR

Motion-Systems Qubic System - Belt Tensioner...

Motion-Systems Qubic System - Belt Tensioner BT1 - Multi-purpose, dual channel, direct drive seat belt tensioner

The Polish manufacturer Motion Systems, which has developed the "Qubic System" motion platforms and the V3 and Motion Platform Plus under licence for Next Level Racing, has now announced a new sensation: the Belt Tensioner QS-BT1.

And we are a little proud of this development ourselves, as Force2Motion was a driving force behind the development of this extension. With input from the racing and flightsim scene, we persistently fought for Motion Systems to build what we consider to be an indispensable extension for the Qubic systems. And now Motion Systems has introduced this product, which can also be fitted to many stand-alone cockpits without Motion. And of course it's a great extension for those who already have "everything". Well done, guys!

In combination with the BT1V3 adapter developed by us, the Seat Belt Tensioner can be mounted on a Next Level Racing V3 as well as on practically any other seat console. The function of a seat slider for longitudinal adjustment of the seat is fully retained.

Watch the video (sorry German version only)

More info and photos: https://qubicsystem.com/product/qs-bt1/# Please be sure to follow the instructions on installation (seat height, belt openings on the seats) etc.!

About:

Powered by the same technology as the stunning QS-220, the QS-BT1 is a multi-purpose dual channel direct drive seatbelt tightener that enhances immersion in racing simulations like no other device in its class and price range. It not only complements the force feedback of the direct drive steering wheels, but also enhances the overall experience of the already highly immersive QS motion platforms and can even be used as a standalone, independent device if required.

Simulation of braking, lateral acceleration, cornering at high speed, wheel lock and loss of traction are among the key features of QS-BT1. Asymmetric engine vibrations and road effects such as rumble strips are also available for games that support them. Although QS-BT1 was mainly developed for racing simulations, with its 200 N force per channel it can also be successfully used in flight simulators to give you the feeling of gigantic forces during high acceleration manoeuvres.

Scope of delivery:

1x two-channel seat belt tensioner
1x power supply unit
1x cable set
1x set of screws
1x universal bracket for aluminium profile

Optional accessories (recommended):

Emergency stop switch (motion lock) - is not required if other Qubic systems are present, as the system can be controlled via an (existing) motion lock switch.

Note: For the use of seat movers (such as the NLR Motion Platform V3), the QS-BT1 can only be installed on the upper frame of the motion platform near the pivot point and reduces the permissible user weight. A multi-point harness is required and is not included in the scope of delivery.

Only 1.539,00 EUR

Motion-Systems Qubic System - QS-CH2

Qubic System - QS-CH1 Base Frame Set

About:

The QS-CH2 is a 2DoF motion platform that gives the SURGE and YAW motion for even better of feeling vehicle’s traction loss, breaking and accelerating. The motion system based on world’s fastest linear actuator’s technology provides incredible levels of vehicle feedback to the driver. This motion platform is suitable for Rally, Drift, GT and F1 simulations. The platform is fully
compatible with Qubic System 3DOF actuator’s set and QS-CH1 motion cockpit.

The system in our Showroom for testing: VIDEO

Link to Video: https://www.youtube.com/watch?v=GuoGMqHqqug

Key Features:

Based on world’s fastest Qubic System linear actuators
Compact and lightweight design
Suitable for Rally, Drift, GT and other racing simulations
Supported by dedicated software QubicManager: motion adjustment, motion post-processing, extensive diagnostic or easy and fast use of predefined profiles
Traction loss
Also, available as expansion of QS-CH1 motion cockpit
Proudly made in EU: Engineered, Designed and Manufactured in Poland

What is included in the package:

QS-CH2 Motion Platform
QubicManager software download
USB and power cables
Nuts and Bolts required for assembly
Product Manual

Please note:

Price does not contain peripherals like: The Cockpit (The pictured QS-CH1 with the Qubic actuators is NOT included),PC computer, manipulators, game or simulation software, add-ons, accessories.
Requires separate purchase of QS-MC6 (motion platform controler) if not already owned
Production- / Shipping-Time aprox 10-14 weeks after your order.

Attention: Please ask us for the freight costs for your country before ordering, as the shipment may be made together with other Qubic products in a special transport box and the freight costs must therefore be calculated individually.

Only 11.300,00 EUR

Motion-Systems Qubic System - QS-220-2DOF...

Architecture: 2 / 3 / 4 / 6 DOF (depending on user configuration and number of modules)
Actuator stroke: 100 mm | 3.93 in
Maximum velocity:
- Q-Mode (230V): 800 mm/s
- Performance Mode (115V/230V): 400 mm/s
- Heavy Duty Mode (115/230V): 300 mm/s
Maximum acceleration:
- Q-Mode (230V): 0.8G*
- Performance Mode (115V/230V): 0.7G*
- Heavy Duty Mode (115/230V): 0.4G*
- *value of acceleration is limited for safety reasons.
Recommended payload in 3DOF (2x QS-220) configuration:
- Q-Mode: 200kg
- Performance Mode: 250kg
- Heavy Duty Mode: 350kg
Maximum control frequency: 1000 Hz
Vibrations frequency range: 0-100 Hz
Latency: <8 ms
Product weight: 30 kg | 66 lb
Total length: QS-L1: 90 mm | 3.55 in, QS-SB2: 385 mm | 15.16 in
Total width: QS-L1: 90 mm | 3.55 in, QS-SB2: 300 mm | 11.81 in
Total height: QS-L1: 553-653 mm | 22-26 in, QS-SB2: 88 mm | 3.46 in
Cable length (QS-L1 actuator - QS-SB2 Power cabinet): 1150mm | 45.2 in
Power supply requirements: 115/230 VAC Single Phase
Average power consumption in 3DOF configuration:
- Q-Mode: 260W (230V)
- Performance Mode: 280W (230V), 270W (115V)
- Heavy Duty Mode: 436W (230V), 462W (115V)
Peak current for breaker specification in 3DOF configuration:
- Q-Mode: 5.17A (230V)
- Performance Mode: 4.55A (230V), 7.35A (115V)
- Heavy Duty Mode: 5.88A (230V), 9.89A (115V)
Connection: USB

Over 80+ already integrated and supported racing games and professional simulation applications.
Included VR Headway technology uses advanced mathematic formulas to calculate necessary compensation and applies it to the VR headset at runtime. It eliminates platform movements from the VR tracking system causing your experiences to be more immersive, authentic and has huge impact on VR sickness compensation.
The motor control algorithm has been developed to be used strictly in simulation application. The positioning signal is analyzed and preprocessed directly by the driver, so it is possible to change all driver parameters at basically zero cost (time / latency). Drivers parse the incoming command as soon as the command arrives. It also allows to append different types of vibrations (per actuator) on driver level.
Motion sickness compensation thanks to telemetry data provided in real time directly by the game’s engine and immediately injected to the hardware to perform.
Equipped with Tactile Audio Based Feedback System that can use tactile trans-ducers (Buttkicker) connected to a seperate sound card to generate additional effects on your cockpit (Buttkicker and additional Soundcard not included - available seperatly).
Thanks to having full control of the technology Motion Systems company can change control algorithm source code, introduce new parameters and features without waiting for 3rd party vendors. Simple software update can introduce new features to the customers.
Motion SDK (FSM or FSDI) for software developers is also available as an extra option. That powerful interface allows to add a motion platforms support to any application or game.
… and many more!

What is included in the package:

QS-220 motion set:
- 2x QS-220 - linear actuator with cup holder
- 1x QS-SB2 - power cabinet (control module)
- 1x QS-SBML-2 - motion lock cable (up-link/down-link) - 2 m long
- 1x Power cable - 1 pcs of 1,8m long cable for EU market / or 1 pcs of 2m long cable for USA market
- 2x QS brackets for mounting on aluminum profile cockpits (Note: For mounting an FGT cockpit or similar, please also consider the specially widened F2M brackets as an option for an additional charge)

What else is needed to operate the set:

QS-MC6 motion controller set - single unit required to control up to 4 sets of QS-220 (not included - see seperate product)

Only 4.999,00 EUR

Motion Systems - Qubic - QS-MC6 – Motion Controller

Motion-Systems Qubic System - QS-MC6 – Motion...

Qubic System - QS-MC6 – Motion Controller

NO DELIVERY WITHOUT ACTORS PURCHASED FROM US (QS220, QS210 or CH2)

The Motion Systems - Qubic - QS-MC6 - Motion Controller is the central control unit between the QS-210/220 actuator sets or the CH2 (not included - sold separately) and the PC. One QS-MC6 motion controller can control up to 4 QS-sets.

What is included in the package:

QS-MC6 motion controller set - single unit required to control up to 4 sets of QS-220-PL:
- 1x M10 - USB controller
- 1x QS-SBML-1 - motion lock with additional 2 m long cable
- 1x QS-MBT-1 - M-BUS terminator
- 1x USB cable - 0,5 m long cable (USB micro B)
- 1x CAT.5E patch cord cable - 2 m long

Only 409,00 EUR

Order this package and save

Motion-Systems Qubic System - Belt Tensioner...

1x two-channel seat belt tensioner
1x power supply unit
1x cable set
1x set of screws
1x universal bracket for aluminium profile

Optional accessories (recommended):

Emergency stop switch (motion lock) - is not required if other Qubic systems are present, as the system can be controlled via an (existing) motion lock switch.

Only 1.539,00 EUR

Motion-Systems Qubic System - QS-220-2DOF...

Architecture: 2 / 3 / 4 / 6 DOF (depending on user configuration and number of modules)
Actuator stroke: 100 mm | 3.93 in
Maximum velocity:
- Q-Mode (230V): 800 mm/s
- Performance Mode (115V/230V): 400 mm/s
- Heavy Duty Mode (115/230V): 300 mm/s
Maximum acceleration:
- Q-Mode (230V): 0.8G*
- Performance Mode (115V/230V): 0.7G*
- Heavy Duty Mode (115/230V): 0.4G*
- *value of acceleration is limited for safety reasons.
Recommended payload in 3DOF (2x QS-220) configuration:
- Q-Mode: 200kg
- Performance Mode: 250kg
- Heavy Duty Mode: 350kg
Maximum control frequency: 1000 Hz
Vibrations frequency range: 0-100 Hz
Latency: <8 ms
Product weight: 30 kg | 66 lb
Total length: QS-L1: 90 mm | 3.55 in, QS-SB2: 385 mm | 15.16 in
Total width: QS-L1: 90 mm | 3.55 in, QS-SB2: 300 mm | 11.81 in
Total height: QS-L1: 553-653 mm | 22-26 in, QS-SB2: 88 mm | 3.46 in
Cable length (QS-L1 actuator - QS-SB2 Power cabinet): 1150mm | 45.2 in
Power supply requirements: 115/230 VAC Single Phase
Average power consumption in 3DOF configuration:
- Q-Mode: 260W (230V)
- Performance Mode: 280W (230V), 270W (115V)
- Heavy Duty Mode: 436W (230V), 462W (115V)
Peak current for breaker specification in 3DOF configuration:
- Q-Mode: 5.17A (230V)
- Performance Mode: 4.55A (230V), 7.35A (115V)
- Heavy Duty Mode: 5.88A (230V), 9.89A (115V)
Connection: USB

Over 80+ already integrated and supported racing games and professional simulation applications.
Included VR Headway technology uses advanced mathematic formulas to calculate necessary compensation and applies it to the VR headset at runtime. It eliminates platform movements from the VR tracking system causing your experiences to be more immersive, authentic and has huge impact on VR sickness compensation.
The motor control algorithm has been developed to be used strictly in simulation application. The positioning signal is analyzed and preprocessed directly by the driver, so it is possible to change all driver parameters at basically zero cost (time / latency). Drivers parse the incoming command as soon as the command arrives. It also allows to append different types of vibrations (per actuator) on driver level.
Motion sickness compensation thanks to telemetry data provided in real time directly by the game’s engine and immediately injected to the hardware to perform.
Equipped with Tactile Audio Based Feedback System that can use tactile trans-ducers (Buttkicker) connected to a seperate sound card to generate additional effects on your cockpit (Buttkicker and additional Soundcard not included - available seperatly).
Thanks to having full control of the technology Motion Systems company can change control algorithm source code, introduce new parameters and features without waiting for 3rd party vendors. Simple software update can introduce new features to the customers.
Motion SDK (FSM or FSDI) for software developers is also available as an extra option. That powerful interface allows to add a motion platforms support to any application or game.
… and many more!

What is included in the package:

QS-220 motion set:
- 2x QS-220 - linear actuator with cup holder
- 1x QS-SB2 - power cabinet (control module)
- 1x QS-SBML-2 - motion lock cable (up-link/down-link) - 2 m long
- 1x Power cable - 1 pcs of 1,8m long cable for EU market / or 1 pcs of 2m long cable for USA market
- 2x QS brackets for mounting on aluminum profile cockpits (Note: For mounting an FGT cockpit or similar, please also consider the specially widened F2M brackets as an option for an additional charge)

What else is needed to operate the set:

QS-MC6 motion controller set - single unit required to control up to 4 sets of QS-220 (not included - see seperate product)

Only 4.999,00 EUR

Motion-Systems Qubic System - QS-CH2

Based on world’s fastest Qubic System linear actuators
Compact and lightweight design
Suitable for Rally, Drift, GT and other racing simulations
Supported by dedicated software QubicManager: motion adjustment, motion post-processing, extensive diagnostic or easy and fast use of predefined profiles
Traction loss
Also, available as expansion of QS-CH1 motion cockpit
Proudly made in EU: Engineered, Designed and Manufactured in Poland

What is included in the package:

QS-CH2 Motion Platform
QubicManager software download
USB and power cables
Nuts and Bolts required for assembly
Product Manual

Please note:

Price does not contain peripherals like: The Cockpit (The pictured QS-CH1 with the Qubic actuators is NOT included),PC computer, manipulators, game or simulation software, add-ons, accessories.
Requires separate purchase of QS-MC6 (motion platform controler) if not already owned
Production- / Shipping-Time aprox 10-14 weeks after your order.

Only 11.300,00 EUR

Motion-Systems Qubic System - QS-MC6 – Motion...

QS-MC6 motion controller set - single unit required to control up to 4 sets of QS-220-PL:
- 1x M10 - USB controller
- 1x QS-SBML-1 - motion lock with additional 2 m long cable
- 1x QS-MBT-1 - M-BUS terminator
- 1x USB cable - 0,5 m long cable (USB micro B)
- 1x CAT.5E patch cord cable - 2 m long

Only 409,00 EUR

Order this package and save

Motion-Systems Qubic System - QS-MC6 – Motion...

QS-MC6 motion controller set - single unit required to control up to 4 sets of QS-220-PL:
- 1x M10 - USB controller
- 1x QS-SBML-1 - motion lock with additional 2 m long cable
- 1x QS-MBT-1 - M-BUS terminator
- 1x USB cable - 0,5 m long cable (USB micro B)
- 1x CAT.5E patch cord cable - 2 m long

Only 409,00 EUR

Motion-Systems Qubic System - QS-220-2DOF...

Architecture: 2 / 3 / 4 / 6 DOF (depending on user configuration and number of modules)
Actuator stroke: 100 mm | 3.93 in
Maximum velocity:
- Q-Mode (230V): 800 mm/s
- Performance Mode (115V/230V): 400 mm/s
- Heavy Duty Mode (115/230V): 300 mm/s
Maximum acceleration:
- Q-Mode (230V): 0.8G*
- Performance Mode (115V/230V): 0.7G*
- Heavy Duty Mode (115/230V): 0.4G*
- *value of acceleration is limited for safety reasons.
Recommended payload in 3DOF (2x QS-220) configuration:
- Q-Mode: 200kg
- Performance Mode: 250kg
- Heavy Duty Mode: 350kg
Maximum control frequency: 1000 Hz
Vibrations frequency range: 0-100 Hz
Latency: <8 ms
Product weight: 30 kg | 66 lb
Total length: QS-L1: 90 mm | 3.55 in, QS-SB2: 385 mm | 15.16 in
Total width: QS-L1: 90 mm | 3.55 in, QS-SB2: 300 mm | 11.81 in
Total height: QS-L1: 553-653 mm | 22-26 in, QS-SB2: 88 mm | 3.46 in
Cable length (QS-L1 actuator - QS-SB2 Power cabinet): 1150mm | 45.2 in
Power supply requirements: 115/230 VAC Single Phase
Average power consumption in 3DOF configuration:
- Q-Mode: 260W (230V)
- Performance Mode: 280W (230V), 270W (115V)
- Heavy Duty Mode: 436W (230V), 462W (115V)
Peak current for breaker specification in 3DOF configuration:
- Q-Mode: 5.17A (230V)
- Performance Mode: 4.55A (230V), 7.35A (115V)
- Heavy Duty Mode: 5.88A (230V), 9.89A (115V)
Connection: USB

Over 80+ already integrated and supported racing games and professional simulation applications.
Included VR Headway technology uses advanced mathematic formulas to calculate necessary compensation and applies it to the VR headset at runtime. It eliminates platform movements from the VR tracking system causing your experiences to be more immersive, authentic and has huge impact on VR sickness compensation.
The motor control algorithm has been developed to be used strictly in simulation application. The positioning signal is analyzed and preprocessed directly by the driver, so it is possible to change all driver parameters at basically zero cost (time / latency). Drivers parse the incoming command as soon as the command arrives. It also allows to append different types of vibrations (per actuator) on driver level.
Motion sickness compensation thanks to telemetry data provided in real time directly by the game’s engine and immediately injected to the hardware to perform.
Equipped with Tactile Audio Based Feedback System that can use tactile trans-ducers (Buttkicker) connected to a seperate sound card to generate additional effects on your cockpit (Buttkicker and additional Soundcard not included - available seperatly).
Thanks to having full control of the technology Motion Systems company can change control algorithm source code, introduce new parameters and features without waiting for 3rd party vendors. Simple software update can introduce new features to the customers.
Motion SDK (FSM or FSDI) for software developers is also available as an extra option. That powerful interface allows to add a motion platforms support to any application or game.
… and many more!

What is included in the package:

QS-220 motion set:
- 2x QS-220 - linear actuator with cup holder
- 1x QS-SB2 - power cabinet (control module)
- 1x QS-SBML-2 - motion lock cable (up-link/down-link) - 2 m long
- 1x Power cable - 1 pcs of 1,8m long cable for EU market / or 1 pcs of 2m long cable for USA market
- 2x QS brackets for mounting on aluminum profile cockpits (Note: For mounting an FGT cockpit or similar, please also consider the specially widened F2M brackets as an option for an additional charge)

What else is needed to operate the set:

QS-MC6 motion controller set - single unit required to control up to 4 sets of QS-220 (not included - see seperate product)

Only 4.999,00 EUR

Order this package and save

Motion-Systems Qubic System - QS-Pivot

Motion-Systems Qubic System - QS-Pivot

About

QS-Pivot is an innovative accessory designed for users seeking the intense sensations typically found in high-end simulators. When combined with QS-210 or QS-220 actuators, it creates a unique 2.5 DOF* configuration that delivers full immersion in driving simulation.

We recognize that many individuals cannot afford the one-time expense of implementing a 3DOF (4 actuators) system for their simulator. To address this, we are introducing the option to take the first step with just 2 actuators using an additional accessory: the pivot leg, which we are thrilled to add to the Qubic System lineup.

Interestingly, if the QS-PIVOT is mounted sufficiently far forward, this setup will create the impression of an additional HEAVE axis, as the motion from the PITCH axis will be so optimized that it feels like translational (vertical) motion to the human vestibular system. Thus, with just 2 actuators combined with the pivot leg, users can achieve a “2.5 DOF” sensation, which may be an excellent starting point for many enthusiasts.* Heave motion pattern combined from pitch axis.

Scope of delivery QS-PIVOT:

1x QS-PIVOT-Bar
Screws
Manual

Actuators NOT included!l

Only 409,00 EUR

Motion-Systems Qubic System - QS-MC6 – Motion...

QS-MC6 motion controller set - single unit required to control up to 4 sets of QS-220-PL:
- 1x M10 - USB controller
- 1x QS-SBML-1 - motion lock with additional 2 m long cable
- 1x QS-MBT-1 - M-BUS terminator
- 1x USB cable - 0,5 m long cable (USB micro B)
- 1x CAT.5E patch cord cable - 2 m long

Only 409,00 EUR

Motion-Systems Qubic System - QS-220-2DOF...

Architecture: 2 / 3 / 4 / 6 DOF (depending on user configuration and number of modules)
Actuator stroke: 100 mm | 3.93 in
Maximum velocity:
- Q-Mode (230V): 800 mm/s
- Performance Mode (115V/230V): 400 mm/s
- Heavy Duty Mode (115/230V): 300 mm/s
Maximum acceleration:
- Q-Mode (230V): 0.8G*
- Performance Mode (115V/230V): 0.7G*
- Heavy Duty Mode (115/230V): 0.4G*
- *value of acceleration is limited for safety reasons.
Recommended payload in 3DOF (2x QS-220) configuration:
- Q-Mode: 200kg
- Performance Mode: 250kg
- Heavy Duty Mode: 350kg
Maximum control frequency: 1000 Hz
Vibrations frequency range: 0-100 Hz
Latency: <8 ms
Product weight: 30 kg | 66 lb
Total length: QS-L1: 90 mm | 3.55 in, QS-SB2: 385 mm | 15.16 in
Total width: QS-L1: 90 mm | 3.55 in, QS-SB2: 300 mm | 11.81 in
Total height: QS-L1: 553-653 mm | 22-26 in, QS-SB2: 88 mm | 3.46 in
Cable length (QS-L1 actuator - QS-SB2 Power cabinet): 1150mm | 45.2 in
Power supply requirements: 115/230 VAC Single Phase
Average power consumption in 3DOF configuration:
- Q-Mode: 260W (230V)
- Performance Mode: 280W (230V), 270W (115V)
- Heavy Duty Mode: 436W (230V), 462W (115V)
Peak current for breaker specification in 3DOF configuration:
- Q-Mode: 5.17A (230V)
- Performance Mode: 4.55A (230V), 7.35A (115V)
- Heavy Duty Mode: 5.88A (230V), 9.89A (115V)
Connection: USB

Over 80+ already integrated and supported racing games and professional simulation applications.
Included VR Headway technology uses advanced mathematic formulas to calculate necessary compensation and applies it to the VR headset at runtime. It eliminates platform movements from the VR tracking system causing your experiences to be more immersive, authentic and has huge impact on VR sickness compensation.
The motor control algorithm has been developed to be used strictly in simulation application. The positioning signal is analyzed and preprocessed directly by the driver, so it is possible to change all driver parameters at basically zero cost (time / latency). Drivers parse the incoming command as soon as the command arrives. It also allows to append different types of vibrations (per actuator) on driver level.
Motion sickness compensation thanks to telemetry data provided in real time directly by the game’s engine and immediately injected to the hardware to perform.
Equipped with Tactile Audio Based Feedback System that can use tactile trans-ducers (Buttkicker) connected to a seperate sound card to generate additional effects on your cockpit (Buttkicker and additional Soundcard not included - available seperatly).
Thanks to having full control of the technology Motion Systems company can change control algorithm source code, introduce new parameters and features without waiting for 3rd party vendors. Simple software update can introduce new features to the customers.
Motion SDK (FSM or FSDI) for software developers is also available as an extra option. That powerful interface allows to add a motion platforms support to any application or game.
… and many more!

What is included in the package:

QS-220 motion set:
- 2x QS-220 - linear actuator with cup holder
- 1x QS-SB2 - power cabinet (control module)
- 1x QS-SBML-2 - motion lock cable (up-link/down-link) - 2 m long
- 1x Power cable - 1 pcs of 1,8m long cable for EU market / or 1 pcs of 2m long cable for USA market
- 2x QS brackets for mounting on aluminum profile cockpits (Note: For mounting an FGT cockpit or similar, please also consider the specially widened F2M brackets as an option for an additional charge)

What else is needed to operate the set:

QS-MC6 motion controller set - single unit required to control up to 4 sets of QS-220 (not included - see seperate product)

Only 4.999,00 EUR

This product is compatible with (for example):

Motion-Systems Qubic System - QS-MC6 – Motion...

QS-MC6 motion controller set - single unit required to control up to 4 sets of QS-220-PL:
- 1x M10 - USB controller
- 1x QS-SBML-1 - motion lock with additional 2 m long cable
- 1x QS-MBT-1 - M-BUS terminator
- 1x USB cable - 0,5 m long cable (USB micro B)
- 1x CAT.5E patch cord cable - 2 m long

416,00 EUR

Motion Systems - Qubic - QS-CH1 Base Frame Set

Motion-Systems Qubic System - QS-CH1 Base...

Qubic System - QS-CH1 Base Frame Set

About:

The QS-CH1 is an innovative training product designed for advanced simulation of various modes of transport. Its compact design based on the technology of linear actuators makes the driver move to the virtual world with the mapping of stimuli from the real world.

Electric actuators (not included in the Base Frame Set - see seperate products) generate precise vibrations in real time and reproduce the finest details while driving – such as curves and obstacles on the racetrack. The lightweight and compact structure makes it easy to transport as well as service for multiple and variable installation.

QS-CH1 BASE
- 1x motion floor with mounting brackets:
- 4x mounting bracket for actuators

Attention: A cockpit set is available as an add-on to the base set (see: https://www.force2motion.de/de/motion-systems-qubic-system-qs-ch1-cockpit-set.html). These parts are not included in the base set!

Price does not contain peripherals like: PC computer, actuators, controllers, the cockpit set, game or simulation software, add-ons, accessories.

1.899,00 EUR

Motion Systems - Qubic - QS-CH1 Full-Set 3DOF

Motion-Systems Qubic System - QS-CH1 Full-Set...

Qubic System - QS-CH1 Full-Set 3DOF

About:

The QS-CH1 is an innovative training product designed for advanced simulation of various modes of transport. Its compact design based on the technology of linear actuators makes the driver move to the virtual world with the mapping of stimuli from the real world.

Electric actuators generate precise vibrations in real time and reproduce the finest details while driving – such as curves and obstacles on the racetrack. The lightweight and compact structure makes it easy to transport as well as service for multiple and variable installation.

QS-CH1 is a brand new, modular, and flexibly configurable training product dedicated for advanced land vehicles and city car driving simulation. QS-CH1 is a part of the Qubic System product’s series. By using a number of expansion accessories, including manipulators and dedicated peripherals, it is possible to quickly build a simulator for future drivers or vehicle operators. The motion system consists of 3 DOF platform with electric actuators that provide cues for vehicle acceleration, road curvature and obstacles such as sidewalks and potholes. QS-CH1 only needs a 1.5 square meter place, and it is ideal for applications where the key is to reproduce the ergonomics of the original vehicle within a compact and mobile form. Power cabinets are located in the lower part of the QS-CH1 motion platform, under the cockpit, which significantly reduces the usable space and improves safety.

The motion system QS-CH1 gives the possibility to fit and install various dashboards and steering wheels in the easy way. This product opened up new possibilities for driving schools, car manufacturers and people running R&D projects related to land vehicles.

QS-CH1 device is a modular, and configurable training product dedicated for advanced land vehicles and city car driving simulation. Users who already have a motion base (motion platform) can only use a floor with seat and steering wheel mounting brackets, which can be easily and quickly adapted to individual projects.

12.590,00 EUR

Motion-Systems Qubic System - QS-CH2

Based on world’s fastest Qubic System linear actuators
Compact and lightweight design
Suitable for Rally, Drift, GT and other racing simulations
Supported by dedicated software QubicManager: motion adjustment, motion post-processing, extensive diagnostic or easy and fast use of predefined profiles
Traction loss
Also, available as expansion of QS-CH1 motion cockpit
Proudly made in EU: Engineered, Designed and Manufactured in Poland

What is included in the package:

QS-CH2 Motion Platform
QubicManager software download
USB and power cables
Nuts and Bolts required for assembly
Product Manual

Please note:

Price does not contain peripherals like: The Cockpit (The pictured QS-CH1 with the Qubic actuators is NOT included),PC computer, manipulators, game or simulation software, add-ons, accessories.
Requires separate purchase of QS-MC6 (motion platform controler) if not already owned
Production- / Shipping-Time aprox 10-14 weeks after your order.

11.660,00 EUR

Motion-Systems Qubic System - QS-Bracket

Qubic System - QS-Bracket

The universal brackets for Qubic System actuators and 3rd party racing cockpits. The QS brackets have a hole spacing that fits the most common simracing cockpits on the market.

Scope of delivery:
1 bracket - consisting of a left and right half-shell - For a complete set of 4 actuators you need 4 of these parts

49,00 EUR

These products might also interest you (please check compatibility in the product details or ask us explicitly)...

F2M Floor Plate Aluminium Cockpit

F2M Floor Plate Aluminium Cockpit

The F2M floor plate is installed in aluminium cockpits (e.g. Track Racer) and prevents the driver from stepping on the centre module of the NLR Traction Plus when the cockpit is mounted on it.

The plate consists of a 5mm thick folded aluminium sheet, powder-coated in black fine structure with corresponding holes for mounting on the aluminium profiles of the cockpit. The set is delivered with 6x screws and groove stones I-profile M8.

179,00 EUR

Motion-Systems Qubic System - QS-MC6 – Motion...

QS-MC6 motion controller set - single unit required to control up to 4 sets of QS-220-PL:
- 1x M10 - USB controller
- 1x QS-SBML-1 - motion lock with additional 2 m long cable
- 1x QS-MBT-1 - M-BUS terminator
- 1x USB cable - 0,5 m long cable (USB micro B)
- 1x CAT.5E patch cord cable - 2 m long

416,00 EUR

Motion-Systems Qubic System - QS-CH1 Base...

QS-CH1 BASE
- 1x motion floor with mounting brackets:
- 4x mounting bracket for actuators

1.899,00 EUR

Motion-Systems Qubic System - QS-CH1 Full-Set...

12.590,00 EUR

Motion-Systems Qubic System - QS-CH2

Based on world’s fastest Qubic System linear actuators
Compact and lightweight design
Suitable for Rally, Drift, GT and other racing simulations
Supported by dedicated software QubicManager: motion adjustment, motion post-processing, extensive diagnostic or easy and fast use of predefined profiles
Traction loss
Also, available as expansion of QS-CH1 motion cockpit
Proudly made in EU: Engineered, Designed and Manufactured in Poland

What is included in the package:

QS-CH2 Motion Platform
QubicManager software download
USB and power cables
Nuts and Bolts required for assembly
Product Manual

Please note:

Price does not contain peripherals like: The Cockpit (The pictured QS-CH1 with the Qubic actuators is NOT included),PC computer, manipulators, game or simulation software, add-ons, accessories.
Requires separate purchase of QS-MC6 (motion platform controler) if not already owned
Production- / Shipping-Time aprox 10-14 weeks after your order.

11.660,00 EUR

Motion-Systems Qubic System - QS-Bracket

49,00 EUR

Motion-Systems Qubic System - QS-CH1 Cockpit...

Motion-Systems Qubic System - QS-CH1 Cockpit Set (Add-On for QS-CH1 Base Frame Set)

Attention: You need the Qubic System - QS-CH1 Base Frame Set as a basis for this add-on (not included)!

What is included in the package:

QS-CH1 COCKPIT SET
- Steering Wheel Bracket
- Pedals BracketSeat Mounting Bracket
- Seat Adjustment Bracket
- Switch Box

The price does not include peripherals such as: PC computer, actuators, Base Frame Se, controllers, game or simulation software, add-ons, accessories, etc.

Attention: Please ask us for the freight costs for your country before ordering, as the shipment may be made together with other Qubic products in a special transport box and the freight costs must therefore be calculated individually.

1.349,00 EUR

Motion-Systems Qubic System - Motion Lock...

Motion-Systems Qubic System - Motion Lock for Seat Belt Tensioner

Emergency stop switch (Motion Lock) - recommended Option for Seat Belt Tensioner Qubic BT1
(not required if other Qubic systems are present, as the system can be controlled via an (existing) motion lock switch)

139,00 EUR

Qubic System - CH2 - Foot for actuator

Qubic System - CH2 - Foot for actuator

Scope of delivery: 1 piece (4 pieces are required for one cockpit)

45,00 EUR

Cockpit Adapter Set Qubic CH2

Cockpit Adapter Set Qubic CH2

With the cockpit adapter set Qubic CH2 it is possible to mount wider cockpits such as the NLF FGT Elite on a Qubic CH2.

245,00 EUR

F2M Adapter System FGT-Elite-Qubic

Base plate black powder-coated 5 mm drilled for NLR FGT Elite
T-nuts
screws
4x double sets of actuator brackets for wider actuator mounting - A double set consists of two identical / mirrored brackets.
Any controllers and accessories shown are NOT included!

890,00 EUR

Motion-Systems Qubic System - QS-Pivot

Motion-Systems Qubic System - QS-Pivot

About

Scope of delivery QS-PIVOT:

1x QS-PIVOT-Bar
Screws
Manual

Actuators NOT included!l

416,00 EUR

Motion Systems Qubic System - SDK

Motion Systems Qubic System - SDK

ForceSeatMI (Motion Interface) is a programming interface that allows to add a motion platform support to basically any application or a game. The ForceSeatMI does not control hardware directly – it sends all data to ForceSeatPM. This approach delegates responsibility of transforming telemetry data to a real motion from the application to ForceSeatPM.

Licence is bound to a serial number of a Motion Platform.

See more product details here

1.129,00 EUR

This product was added to our catalog on Wednesday, September 15, 2021.

For more information, please visit the home page for this product.
