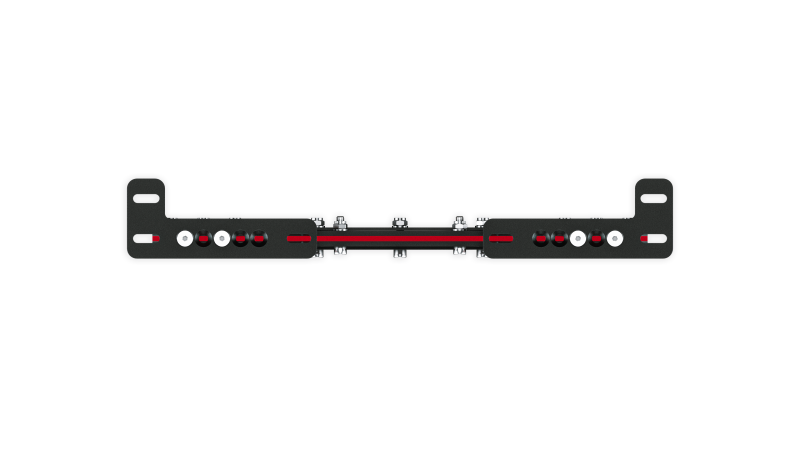

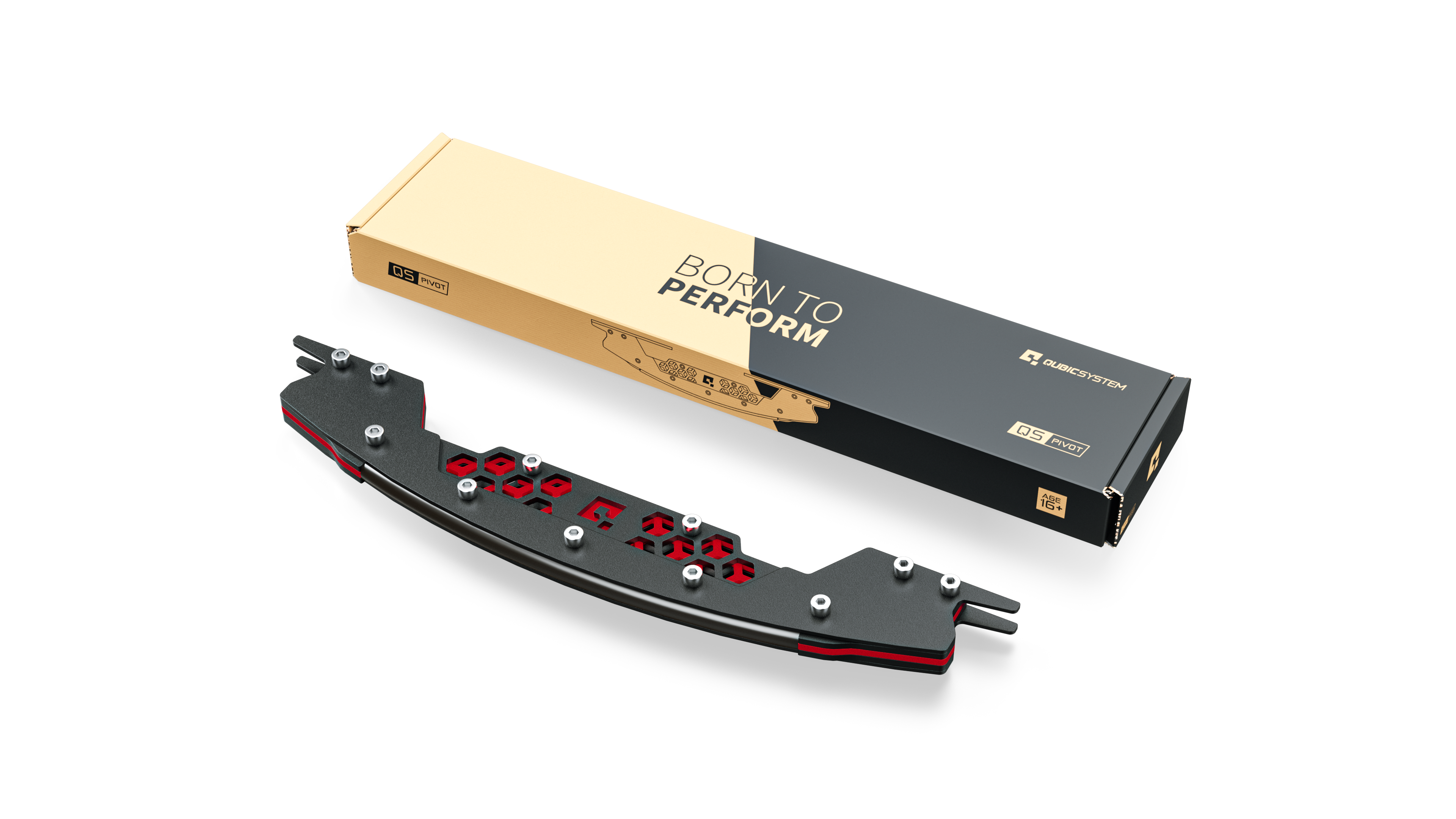

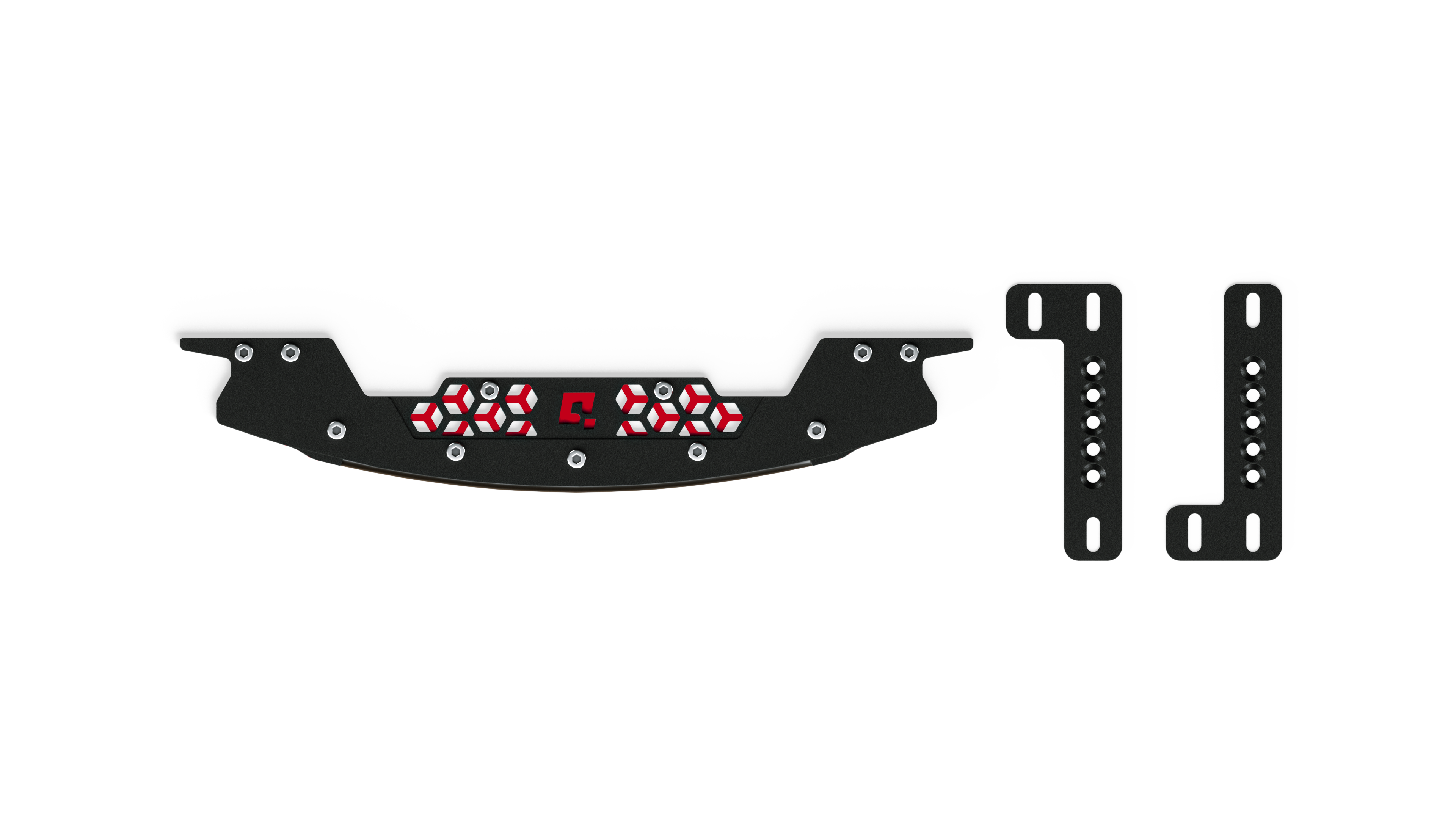

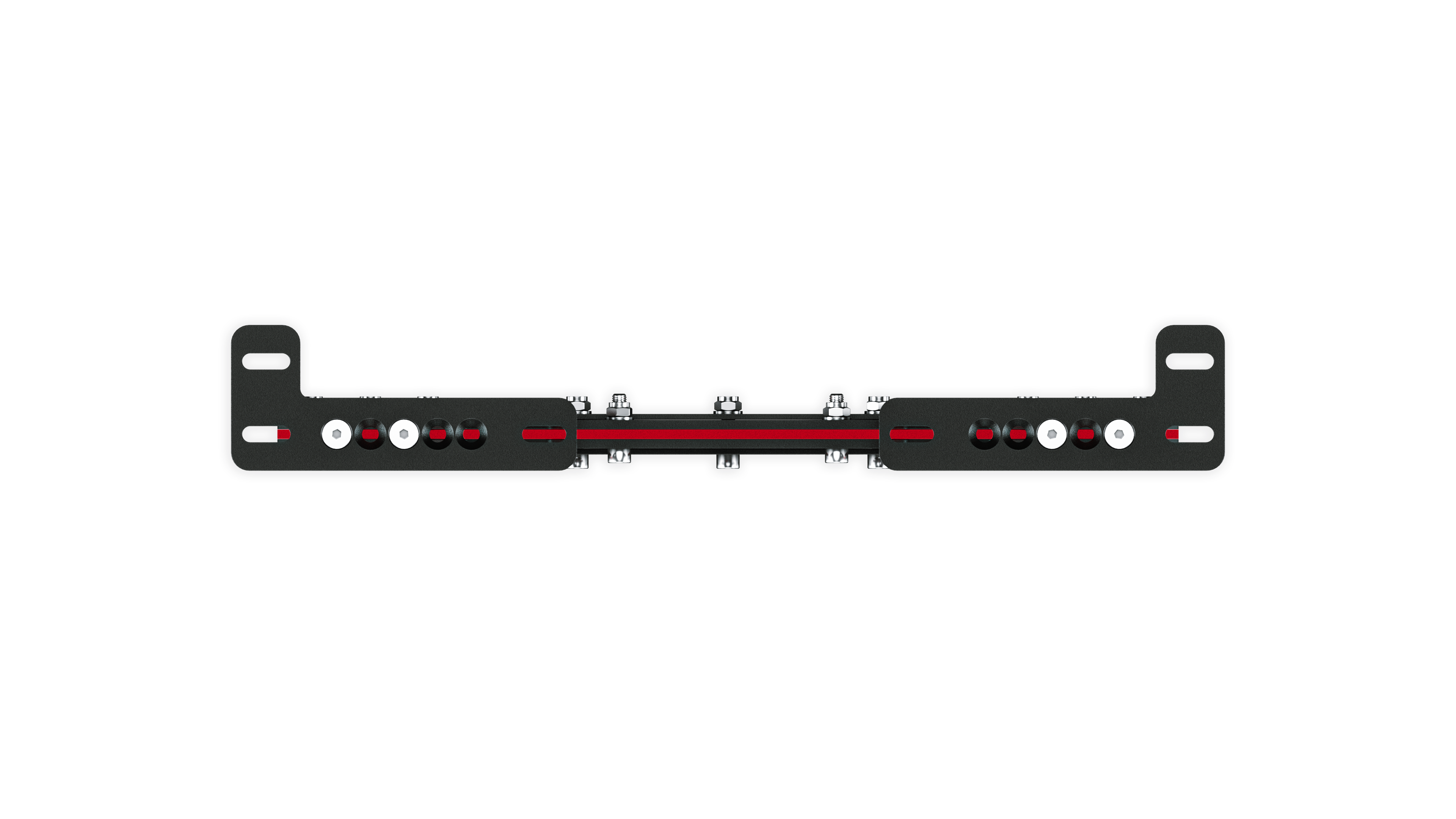

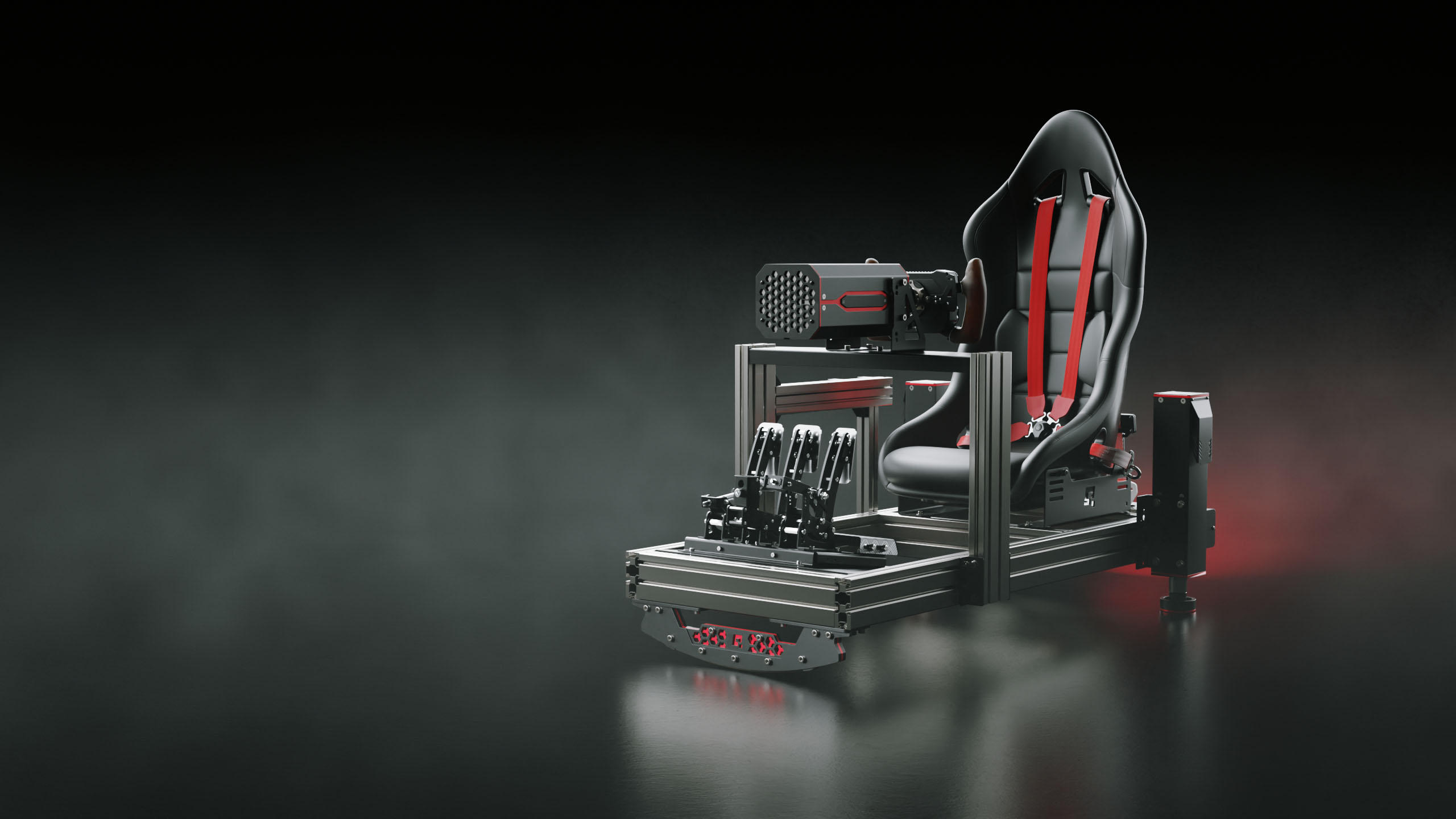

Motion-Systems Qubic System - QS-Pivot

Qubic System - QS-220 Motion System - Set with 2 Actuators and 1 Power Cabinet

About QS-220

Linear actuator technology by Motion Systems allows to develop highly realistic applications with detailed motion textures, velocity, suspension interaction feedback, engine vibrations, tactile feedback, haptic system and vehicle dynamics. Innovative technology, modular and compact design, as well as the quiet operation makes the QS-220 as a perfect motion base not only for professional application but also for home users in various types of cockpits. Additional sets of QS-220 can be configured as a 4 and 6 actuated system to provide 3 / 4 / 6 DOF using dedicated cockpits from Qubic System product line.

By using dedicated software Qubic Manager the user can use several sets to create the most realistic simulation that immediately responds to onscreen situations to deliver real life experience in gaming or VR
applications. Motion Systems is a global leading motion platforms brand for professionals and the most demanding home users. For over 10 year the company has been designing and providing bespoke motion solutions for industry and cutting edge technology for racing and flight simulation.

Fast Facts - Hardware:

Patent pending technology of QS-L1 linear actuators from Qubic System Line allows to develop highly realistic applications with detailed effects from simulation telemetry. Motor drivers have
been designed by Motion Systems company to do just one job, to control motors in vehicle simulator applications and they are exceptionally good at it.

Included power cabinet (control module) QS-SB2 is responsible for the power distribution and communication to handle telemetry signal processing where motion controller dispatches the commands
to drivers which parse the incoming command as soon as the command arrives. Control module sets the motion and vibration cues for each single actuator. The driver works with both 115V and 230V power
network without any adapters or voltage converters.

General specification of QS-220 set:

• Architecture: 2 / 3 / 4 / 6 DOF (depending on user configuration and number of modules)
• Actuator stroke: 100 mm | 3.93 in
• Maximum velocity:
  • Q-Mode (230V): 800 mm/s
  • Performance Mode (115V/230V): 400 mm/s
  • Heavy Duty Mode (115/230V): 300 mm/s
• Maximum acceleration:
  • Q-Mode (230V): 0.8G*
  • Performance Mode (115V/230V): 0.7G*
  • Heavy Duty Mode (115/230V): 0.4G*
  • *value of acceleration is limited for safety reasons.
• Recommended payload in 3DOF (2x QS-220) configuration:
  • Q-Mode: 200kg
  • Performance Mode: 250kg
  • Heavy Duty Mode: 350kg
• Maximum control frequency: 1000 Hz
• Vibrations frequency range: 0-100 Hz
• Latency: <8 ms
• Product weight: 30 kg | 66 lb
• Total length: QS-L1: 90 mm | 3.55 in, QS-SB2: 385 mm | 15.16 in
• Total width: QS-L1: 90 mm | 3.55 in, QS-SB2: 300 mm | 11.81 in
• Total height: QS-L1: 553-653 mm | 22-26 in, QS-SB2: 88 mm | 3.46 in
• Cable length (QS-L1 actuator - QS-SB2 Power cabinet): 1150mm | 45.2 in
• Power supply requirements: 115/230 VAC Single Phase
• Average power consumption in 3DOF configuration:
  • Q-Mode: 260W (230V)
  • Performance Mode: 280W (230V), 270W (115V)
  • Heavy Duty Mode: 436W (230V), 462W (115V)
• Peak current for breaker specification in 3DOF configuration:
  • Q-Mode: 5.17A (230V)
  • Performance Mode: 4.55A (230V), 7.35A (115V)
  • Heavy Duty Mode: 5.88A (230V), 9.89A (115V)
• Connection: USB

Fast Facts - Software:

Even most advanced hardware is nothing without good software. Qubic Manager by Motion Systems company is professional and specialized software for the platform and is "click and play" compatible with
all major racing and flight titles on PC and constantly updated to support new applications as they are released. Gives user possibilities of motion adjustments, motion post-processing, extensive diagnostic or
easy and fast use of predefined profiles. The Qubic Manager is a powerful engine, yet it’s simple to use meaning you can adjust levels of motion, bumps, roll and pitch with a click of a button.

Qubic Manager software license is free-of-charge.

Few main features:

• Over 80+ already integrated and supported racing games and professional simulation applications.
• Included VR Headway technology uses advanced mathematic formulas to calculate necessary compensation and applies it to the VR headset at runtime. It eliminates platform movements from the VR tracking system causing your experiences to be more immersive, authentic and has huge impact on VR sickness compensation.
• The motor control algorithm has been developed to be used strictly in simulation application. The positioning signal is analyzed and preprocessed directly by the driver, so it is possible to change all driver parameters at basically zero cost (time / latency). Drivers parse the incoming command as soon as the command arrives. It also allows to append different types of vibrations (per actuator) on driver level.
• Motion sickness compensation thanks to telemetry data provided in real time directly by the game’s engine and immediately injected to the hardware to perform.
• Equipped with Tactile Audio Based Feedback System that can use tactile trans-ducers (Buttkicker) connected to a seperate sound card to generate additional effects on your cockpit (Buttkicker and additional Soundcard not included - available seperatly).
• Thanks to having full control of the technology Motion Systems company can change control algorithm source code, introduce new parameters and features without waiting for 3rd party vendors. Simple software update can introduce new features to the customers.
• Motion SDK (FSM or FSDI) for software developers is also available as an extra option. That powerful interface allows to add a motion platforms support to any application or game.
• … and many more!

What is included in the package:

• QS-220 motion set:
  • 2x QS-220 - linear actuator with cup holder
  • 1x QS-SB2 - power cabinet (control module)
  • 1x QS-SBML-2 - motion lock cable (up-link/down-link) - 2 m long
  • 1x Power cable - 1 pcs of 1,8m long cable for EU market / or 1 pcs of 2m long cable for USA market
  • 2x QS brackets for mounting on aluminum profile cockpits (Note: For mounting an FGT cockpit or similar, please also consider the specially widened F2M brackets as an option for an additional charge)

What else is needed to operate the set:

• QS-MC6 motion controller set - single unit required to control up to 4 sets of QS-220 (not included - see seperate product)

Qubic System - QS-MC6 – Motion Controller

NO DELIVERY WITHOUT ACTORS PURCHASED FROM US (QS220, QS210 or CH2)

The Motion Systems - Qubic - QS-MC6 - Motion Controller is the central control unit between the QS-210/220 actuator sets or the CH2 (not included - sold separately) and the PC. One QS-MC6 motion controller can control up to 4 QS-sets.

What is included in the package:

• QS-MC6 motion controller set - single unit required to control up to 4 sets of QS-220-PL:
  • 1x M10 - USB controller
  • 1x QS-SBML-1 - motion lock with additional 2 m long cable
  • 1x QS-MBT-1 - M-BUS terminator
  • 1x USB cable - 0,5 m long cable (USB micro B)
  • 1x CAT.5E patch cord cable - 2 m long

Qubic System - QS-Bracket

The universal brackets for Qubic System actuators and 3rd party racing cockpits. The QS brackets have a hole spacing that fits the most common simracing cockpits on the market.

Scope of delivery:
1 bracket - consisting of a left and right half-shell - For a complete set of 4 actuators you need 4 of these parts

Motion-Systems Qubic System - QS-210 Motion System - 2DOF

About QS-210

The QS-210 2DoF motion system is designed as a more compact iteration of the Qubic System QS-220 industrial-grade linear actuators. This motion set is linear, efficient, easy to connect, and requires no maintenance. The motion system shares the same features as the linear actuators utilized in Qubic System motion cockpits, particularly the attributes of low latency time and real-time vibrations. Tailored for dedicated sim racers and drivers, the QS-210 motion system includes additional sets of brackets that enable racers to install actuators in the most popular aluminum profile based cockpits available on the global market.

Possible configurations and required add-ons:

• Attention: A QS-MC6 controller is required for operation on a Windows PC (not included) - see corresponding sets

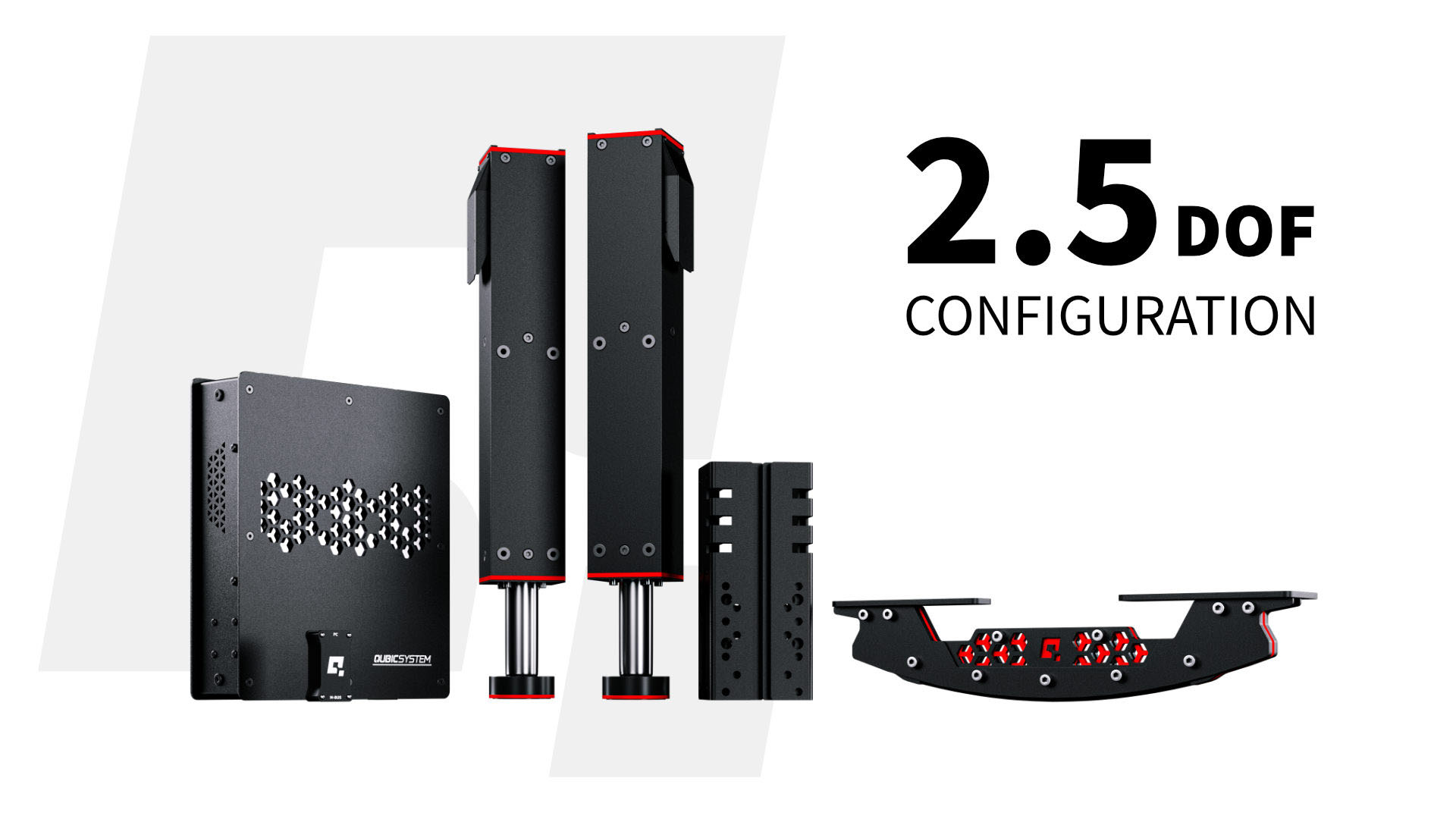

• An additional rocker (QS pivot) is required for operation as a 2.5 DOF system (not included) - see corresponding sets
• The 2DOF system or the 2.5 DOF set can be upgraded to a 3DOF system with an additional QS-210 set (not included) - see corresponding sets

Scope of delivery QS-210 Motion System - 2DOF:

• 2 x QS-210 actuators
• Power cabinet
• 2x brackets for mounting the actuators on standard cockpits
• Screws and accessories
•  Manual

Box dimensions and weight:

• 71 cm x 53 cm x 16 cm | 27.9 in x 20.9 in x 6.3 in
• 30 kg| 66.14 lb

Next Level Racing ELITE Motion Adapter Frame for Motion Platform Plus

TIP: The parts can also be used for DIY projects (40x40 aluminum cockpits). Sale while supplies last.

With the Next Level Racing ELITE Motion Adapter Frame for Motion Platform Plus it is possible to combine one or two Motion Platform Plus with the Next Level Racing® Flight or the FGT Elite Simulator Cockpit.

Fast Facts

• Designed to make the Next Level Racing® F-GT cockpit and Next Level Racing® Flight Simulators compatible with the Next Level Racing ®Motion Plus Platform or Traction Plus Platform.
• Constructed with premium black aluminum and Carbon Steel components for strength and rigidity.
• Can attach up to 2 Next Level Racing® Motion Platforms to the Motion Adaptor Frame

Attention: Please also note our own development for even more flexibility and compatibility: https://www.force2motion.de/en/force2motion-adapter-system-motion-platform-plus-basistraeger-unten.html

About

Introducing the Next Level Racing Motion Adaptor Frame - the ultimate solution to transform your F-GT or Flight Simulator cockpit into a Motion Plus or Traction Plus compatible setup. With the ability to choose from one to two Motion Plus options or one Traction Plus Platform configuration, this adaptor frame provides unparalleled flexibility to suit your immersive experience preferences. The solid construction of 4mm carbon steel and black anodized aluminum extrusion ensures durability and strength.

Possible configurations

Next Level Racing® F-GT Cockpit

• 1x Next Level Racing® Motion Plus Platform
• 2X Next Level Racing® Motion Plus Platform
• 1X Next Level Racing® Traction Plus Platform

 Next Level Racing Flight Simulators (Including Boeing Edition)

• 1x Next Level Racing® Motion Plus Platform
• 2X Next Level Racing® Motion Plus Platform
• 1X Next Level Racing® Traction Plus Platform

*Please note that using both platforms (Next Level Racing® Motion Plus Platform and Next Level Racing® Traction Plus Platform) simultaneously requires the addition of the Next Level Racing® Traction Adapter Frame.

Qubic System - QS-MC6 – Motion Controller

NO DELIVERY WITHOUT ACTORS PURCHASED FROM US (QS220, QS210 or CH2)

The Motion Systems - Qubic - QS-MC6 - Motion Controller is the central control unit between the QS-210/220 actuator sets or the CH2 (not included - sold separately) and the PC. One QS-MC6 motion controller can control up to 4 QS-sets.

What is included in the package:

• QS-MC6 motion controller set - single unit required to control up to 4 sets of QS-220-PL:
  • 1x M10 - USB controller
  • 1x QS-SBML-1 - motion lock with additional 2 m long cable
  • 1x QS-MBT-1 - M-BUS terminator
  • 1x USB cable - 0,5 m long cable (USB micro B)
  • 1x CAT.5E patch cord cable - 2 m long

Qubic System - QS-220 Motion System - Set with 2 Actuators and 1 Power Cabinet

About QS-220

Linear actuator technology by Motion Systems allows to develop highly realistic applications with detailed motion textures, velocity, suspension interaction feedback, engine vibrations, tactile feedback, haptic system and vehicle dynamics. Innovative technology, modular and compact design, as well as the quiet operation makes the QS-220 as a perfect motion base not only for professional application but also for home users in various types of cockpits. Additional sets of QS-220 can be configured as a 4 and 6 actuated system to provide 3 / 4 / 6 DOF using dedicated cockpits from Qubic System product line.

By using dedicated software Qubic Manager the user can use several sets to create the most realistic simulation that immediately responds to onscreen situations to deliver real life experience in gaming or VR
applications. Motion Systems is a global leading motion platforms brand for professionals and the most demanding home users. For over 10 year the company has been designing and providing bespoke motion solutions for industry and cutting edge technology for racing and flight simulation.

Fast Facts - Hardware:

Patent pending technology of QS-L1 linear actuators from Qubic System Line allows to develop highly realistic applications with detailed effects from simulation telemetry. Motor drivers have
been designed by Motion Systems company to do just one job, to control motors in vehicle simulator applications and they are exceptionally good at it.

Included power cabinet (control module) QS-SB2 is responsible for the power distribution and communication to handle telemetry signal processing where motion controller dispatches the commands
to drivers which parse the incoming command as soon as the command arrives. Control module sets the motion and vibration cues for each single actuator. The driver works with both 115V and 230V power
network without any adapters or voltage converters.

General specification of QS-220 set:

• Architecture: 2 / 3 / 4 / 6 DOF (depending on user configuration and number of modules)
• Actuator stroke: 100 mm | 3.93 in
• Maximum velocity:
  • Q-Mode (230V): 800 mm/s
  • Performance Mode (115V/230V): 400 mm/s
  • Heavy Duty Mode (115/230V): 300 mm/s
• Maximum acceleration:
  • Q-Mode (230V): 0.8G*
  • Performance Mode (115V/230V): 0.7G*
  • Heavy Duty Mode (115/230V): 0.4G*
  • *value of acceleration is limited for safety reasons.
• Recommended payload in 3DOF (2x QS-220) configuration:
  • Q-Mode: 200kg
  • Performance Mode: 250kg
  • Heavy Duty Mode: 350kg
• Maximum control frequency: 1000 Hz
• Vibrations frequency range: 0-100 Hz
• Latency: <8 ms
• Product weight: 30 kg | 66 lb
• Total length: QS-L1: 90 mm | 3.55 in, QS-SB2: 385 mm | 15.16 in
• Total width: QS-L1: 90 mm | 3.55 in, QS-SB2: 300 mm | 11.81 in
• Total height: QS-L1: 553-653 mm | 22-26 in, QS-SB2: 88 mm | 3.46 in
• Cable length (QS-L1 actuator - QS-SB2 Power cabinet): 1150mm | 45.2 in
• Power supply requirements: 115/230 VAC Single Phase
• Average power consumption in 3DOF configuration:
  • Q-Mode: 260W (230V)
  • Performance Mode: 280W (230V), 270W (115V)
  • Heavy Duty Mode: 436W (230V), 462W (115V)
• Peak current for breaker specification in 3DOF configuration:
  • Q-Mode: 5.17A (230V)
  • Performance Mode: 4.55A (230V), 7.35A (115V)
  • Heavy Duty Mode: 5.88A (230V), 9.89A (115V)
• Connection: USB

Fast Facts - Software:

Even most advanced hardware is nothing without good software. Qubic Manager by Motion Systems company is professional and specialized software for the platform and is "click and play" compatible with
all major racing and flight titles on PC and constantly updated to support new applications as they are released. Gives user possibilities of motion adjustments, motion post-processing, extensive diagnostic or
easy and fast use of predefined profiles. The Qubic Manager is a powerful engine, yet it’s simple to use meaning you can adjust levels of motion, bumps, roll and pitch with a click of a button.

Qubic Manager software license is free-of-charge.

Few main features:

• Over 80+ already integrated and supported racing games and professional simulation applications.
• Included VR Headway technology uses advanced mathematic formulas to calculate necessary compensation and applies it to the VR headset at runtime. It eliminates platform movements from the VR tracking system causing your experiences to be more immersive, authentic and has huge impact on VR sickness compensation.
• The motor control algorithm has been developed to be used strictly in simulation application. The positioning signal is analyzed and preprocessed directly by the driver, so it is possible to change all driver parameters at basically zero cost (time / latency). Drivers parse the incoming command as soon as the command arrives. It also allows to append different types of vibrations (per actuator) on driver level.
• Motion sickness compensation thanks to telemetry data provided in real time directly by the game’s engine and immediately injected to the hardware to perform.
• Equipped with Tactile Audio Based Feedback System that can use tactile trans-ducers (Buttkicker) connected to a seperate sound card to generate additional effects on your cockpit (Buttkicker and additional Soundcard not included - available seperatly).
• Thanks to having full control of the technology Motion Systems company can change control algorithm source code, introduce new parameters and features without waiting for 3rd party vendors. Simple software update can introduce new features to the customers.
• Motion SDK (FSM or FSDI) for software developers is also available as an extra option. That powerful interface allows to add a motion platforms support to any application or game.
• … and many more!

What is included in the package:

• QS-220 motion set:
  • 2x QS-220 - linear actuator with cup holder
  • 1x QS-SB2 - power cabinet (control module)
  • 1x QS-SBML-2 - motion lock cable (up-link/down-link) - 2 m long
  • 1x Power cable - 1 pcs of 1,8m long cable for EU market / or 1 pcs of 2m long cable for USA market
  • 2x QS brackets for mounting on aluminum profile cockpits (Note: For mounting an FGT cockpit or similar, please also consider the specially widened F2M brackets as an option for an additional charge)

What else is needed to operate the set:

• QS-MC6 motion controller set - single unit required to control up to 4 sets of QS-220 (not included - see seperate product)
