About QS-220

Linear actuator technology by Motion Systems allows to develop highly realistic applications with detailed motion textures, velocity, suspension interaction feedback, engine vibrations, tactile feedback, haptic system and vehicle dynamics. Innovative technology, modular and compact design, as well as the quiet operation makes the QS-220 as a perfect motion base not only for professional application but also for home users in various types of cockpits. Additional sets of QS-220 can be configured as a 4 and 6 actuated system to provide 3 / 4 / 6 DOF using dedicated cockpits from Qubic System product line.

By using dedicated software Qubic Manager the user can use several sets to create the most realistic simulation that immediately responds to onscreen situations to deliver real life experience in gaming or VR
applications. Motion Systems is a global leading motion platforms brand for professionals and the most demanding home users. For over 10 year the company has been designing and providing bespoke motion solutions for industry and cutting edge technology for racing and flight simulation.

Fast Facts - Hardware:

Patent pending technology of QS-L1 linear actuators from Qubic System Line allows to develop highly realistic applications with detailed effects from simulation telemetry. Motor drivers have
been designed by Motion Systems company to do just one job, to control motors in vehicle simulator applications and they are exceptionally good at it.

Included power cabinet (control module) QS-SB2 is responsible for the power distribution and communication to handle telemetry signal processing where motion controller dispatches the commands
to drivers which parse the incoming command as soon as the command arrives. Control module sets the motion and vibration cues for each single actuator. The driver works with both 115V and 230V power
network without any adapters or voltage converters.

General specification of QS-220 set:

• Architecture: 2 / 3 / 4 / 6 DOF (depending on user configuration and number of modules)
• Actuator stroke: 100 mm | 3.93 in
• Maximum velocity:
  • Q-Mode (230V): 800 mm/s
  • Performance Mode (115V/230V): 400 mm/s
  • Heavy Duty Mode (115/230V): 300 mm/s
• Maximum acceleration:
  • Q-Mode (230V): 0.8G*
  • Performance Mode (115V/230V): 0.7G*
  • Heavy Duty Mode (115/230V): 0.4G*
  • *value of acceleration is limited for safety reasons.
• Recommended payload in 3DOF (2x QS-220) configuration:
  • Q-Mode: 200kg
  • Performance Mode: 250kg
  • Heavy Duty Mode: 350kg
• Maximum control frequency: 1000 Hz
• Vibrations frequency range: 0-100 Hz
• Latency: <8 ms
• Product weight: 30 kg | 66 lb
• Total length: QS-L1: 90 mm | 3.55 in, QS-SB2: 385 mm | 15.16 in
• Total width: QS-L1: 90 mm | 3.55 in, QS-SB2: 300 mm | 11.81 in
• Total height: QS-L1: 553-653 mm | 22-26 in, QS-SB2: 88 mm | 3.46 in
• Cable length (QS-L1 actuator - QS-SB2 Power cabinet): 1150mm | 45.2 in
• Power supply requirements: 115/230 VAC Single Phase
• Average power consumption in 3DOF configuration:
  • Q-Mode: 260W (230V)
  • Performance Mode: 280W (230V), 270W (115V)
  • Heavy Duty Mode: 436W (230V), 462W (115V)
• Peak current for breaker specification in 3DOF configuration:
  • Q-Mode: 5.17A (230V)
  • Performance Mode: 4.55A (230V), 7.35A (115V)
  • Heavy Duty Mode: 5.88A (230V), 9.89A (115V)
• Connection: USB

Fast Facts - Software:

Even most advanced hardware is nothing without good software. Qubic Manager by Motion Systems company is professional and specialized software for the platform and is "click and play" compatible with
all major racing and flight titles on PC and constantly updated to support new applications as they are released. Gives user possibilities of motion adjustments, motion post-processing, extensive diagnostic or
easy and fast use of predefined profiles. The Qubic Manager is a powerful engine, yet it’s simple to use meaning you can adjust levels of motion, bumps, roll and pitch with a click of a button.

Qubic Manager software license is free-of-charge.

Few main features:

• Over 80+ already integrated and supported racing games and professional simulation applications.
• Included VR Headway technology uses advanced mathematic formulas to calculate necessary compensation and applies it to the VR headset at runtime. It eliminates platform movements from the VR tracking system causing your experiences to be more immersive, authentic and has huge impact on VR sickness compensation.
• The motor control algorithm has been developed to be used strictly in simulation application. The positioning signal is analyzed and preprocessed directly by the driver, so it is possible to change all driver parameters at basically zero cost (time / latency). Drivers parse the incoming command as soon as the command arrives. It also allows to append different types of vibrations (per actuator) on driver level.
• Motion sickness compensation thanks to telemetry data provided in real time directly by the game’s engine and immediately injected to the hardware to perform.
• Equipped with Tactile Audio Based Feedback System that can use tactile trans-ducers (Buttkicker) connected to a seperate sound card to generate additional effects on your cockpit (Buttkicker and additional Soundcard not included - available seperatly).
• Thanks to having full control of the technology Motion Systems company can change control algorithm source code, introduce new parameters and features without waiting for 3rd party vendors. Simple software update can introduce new features to the customers.
• Motion SDK (FSM or FSDI) for software developers is also available as an extra option. That powerful interface allows to add a motion platforms support to any application or game.
• … and many more!



With Motion-Systems Qubic System - QS-Pivot to a 2.5 DOF-System

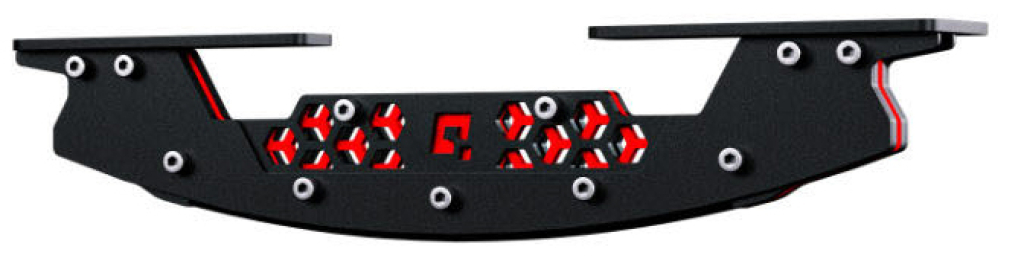

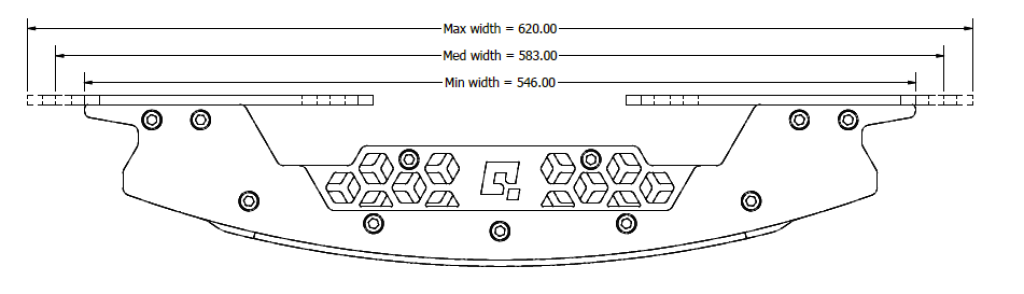

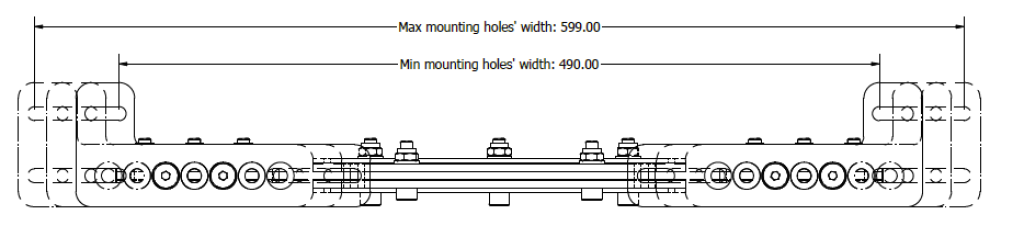

QS-Pivot is an innovative accessory designed for users seeking the intense sensations typically found in high-end simulators. When combined with QS-210 or QS-220 actuators, it creates a unique 2.5 DOF* configuration that delivers full immersion in driving simulation.

We recognize that many individuals cannot afford the one-time expense of implementing a 3DOF (4 actuators) system for their simulator. To address this, we are introducing the option to take the first step with just 2 actuators using an additional accessory: the pivot leg, which we are thrilled to add to the Qubic System lineup.

Interestingly, if the QS-PIVOT is mounted sufficiently far forward, this setup will create the impression of an additional HEAVE axis, as the motion from the PITCH axis will be so optimized that it feels like translational (vertical) motion to the human vestibular system. Thus, with just 2 actuators combined with the pivot leg, users can achieve a “2.5 DOF” sensation, which may be an excellent starting point for many enthusiasts.* Heave motion pattern combined from pitch axis.

What's included:

QS-220 2.5DOF MOTION Set consists:

• 2x – linear actuator QS 220 with stabilization plates
• 2x – power cabinet (control module)
• 2x – mounting brackets (set of 2)
• 1x – motion lock cable (up-link/down-link) – 2 m long
• 1x – power cable
• QS-PIVOT
• QS-MC6 Controller Set with 1x – motion lock with additional 2 m long cable

Can be upgraded to a full 3DOF set with an additional optional QS-220-2DOF set (not included)!

Attention: Special price as a package! If you remove individual mandatory components of the package in the shopping cart, you may lose the price advantage. Therefore, please pay close attention to the prices in the shopping cart!
